Products
產品描述
雙電層電容器EDLC(超級電容器)：能量和功率介於傳統電容與電池之間，能快速充放電，循環壽命長。
鈕扣型超電容：將超級電容的儲能原理實現在鈕扣電池的尺寸和外形中，旨在提供比一般鈕扣電池更強的瞬間功率和更長的循環壽命。
小型化：保持鈕扣電池的體積優勢，方便整合到極小巧的裝置中。
產品規格
| Series | Temp(°C) | Max Oper Voltage(V) | Capacitiance Range (F) |
|---|---|---|---|
| DCL | -25 to +70 | 5.5 | 1 to 1.5 |
| DCLT | -25 to +85 | 3.6/5.5 | 0.47 to 1 |
| DCLH | -25 to +70 | 6.3 | 0.47 to 1 |
| DCS | -25 to +70 | 5.5 | 0.047 to 0.47 |
| DCST | -25 to +85 | 3.6/5.5 | 0.047 to 0.47 |
| DCSP | -40 to +70 | 5.5 | 0.047 to 0.47 |
| DCSR | -40 to +70/ -40 to +85 |
3.6/5.5 | 0.22 to 0.47 |
| DCSH | -25 to +70 | 6.3 | 0.1 to 0.33 |
| DCM | -25 to +70 | 5.5 | 0.047 to 0.22 |
| DCMT | -25 to +85 | 3.6 | 0.047 to 0.22 |

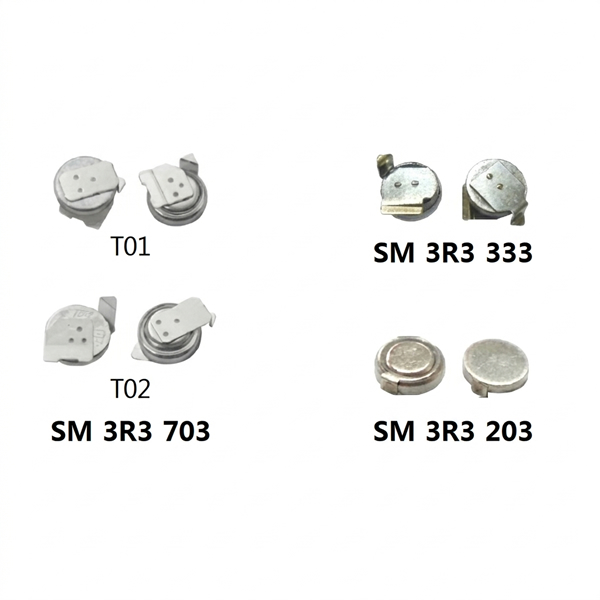

| SM | -25 to +85 | 3.3 | 0.033 to 0.07 |

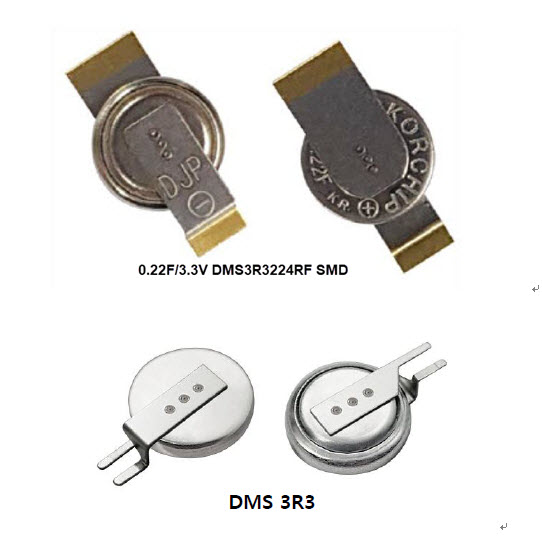

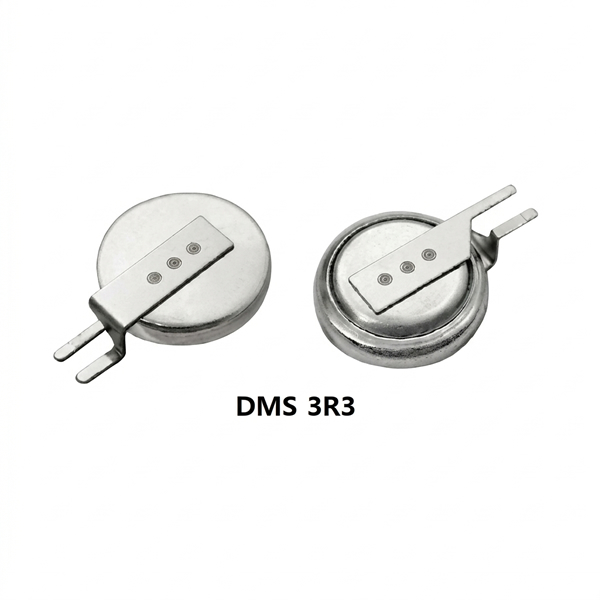

| DMS | -10 to +60 | 3.3 | 0.22 |
